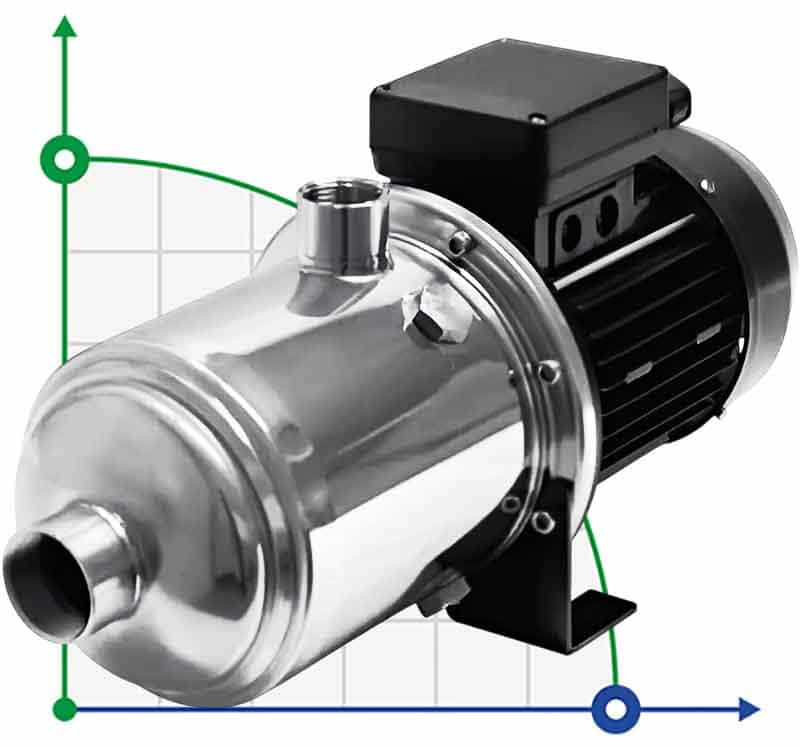

Horizontal multistage pump EHX 9/4, 1.5 kW, 14.4 m3/h, 48m, 380V/T, AISI 304 (EBARA MATRIX)
Click image for a larger view
Horizontal multistage pump EHX 9/4, 1.5 kW, 14.4 m3/h, 48m, 380V/T, AISI 304 (EBARA MATRIX)
Horizontal multistage pump EHX 9/4, 1.5 kW, 14.4 m3/h, 48m, 380V/T, AISI 304 (EBARA MATRIX)
Horizontal multistage pump EHX 9/4, 1.5 kW, 14.4 m3/h, 48m, 380V/T, AISI 304 (EBARA MATRIX)
Horizontal multistage pump EHX 9/4, 1.5 kW, 14.4 m3/h, 48m, 380V/T, AISI 304 (EBARA MATRIX)

Horizontal multistage pump EHX 9/4, 1.5 kW, 14.4 m3/h, 48m, 380V/T, AISI 304 (EBARA MATRIX)

Code: 1051187
(0 review)
ProducerST Pompe
Pump capacity, cu.m/hour14.4
Feed height, m48
Power capacity, kW1,5
MaterialAISI 304 stainless steel
Input pipe diameter1 1/2"
Output pipe diameter1 1/4"
Rate of turn, rpm3 000
ProtectionIP55
Power supply3х380 V, 50 Hz
Explosion protectionNo
Max.flow rate, m3/h14.4
Max. head, m48
Max.temperature, C110
Pressure, bar10
SealMechanical Seal, CAR/CER/EPDM
Impeller materialAISI 304 stainless steel
Shaft materialAISI 304 stainless steel
Housing materialAISI 304 stainless steel
Suction capacity (NPSH), m7
Serial number of the pumpEHX
Country of OriginItaly
PumpTypemulti-stage
Drive Typeelectric
Installation Typehorizontal
Type of configurationwith engine
Analogue forPentax ULTRA, Ebara MATRIX, Lowara HM
Weight, kg17
Length of transport packing, cm610
Width of transport packing, cm260
Height of transport packing, cm220
Show all features (31)
Documentation
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
$670,42 (netto)
Добавить в сравнение
We deliver anywhere in the world
Horizontal multistage pumps of the EHX series, made entirely of stainless steel, are suitable for domestic, agricultural and industrial applications. All parts in contact with the pumped liquid are made of AISI 304 stainless steel to ensure maximum hygiene and corrosion resistance. Pump housing, impeller, diffusers, shaft: AISI 304 stainless steel. Mechanical seal: Car/Cer/EPDM. Bracket and motor housing: aluminium.
Category: Multistage pump
ProducerST Pompe
Pump capacity, cu.m/hour14.4
Feed height, m48
Power capacity, kW1,5
MaterialAISI 304 stainless steel
Input pipe diameter1 1/2"
Output pipe diameter1 1/4"
Rate of turn, rpm3 000
ProtectionIP55
Power supply3х380 V, 50 Hz
Explosion protectionNo
Max.flow rate, m3/h14.4
Max. head, m48
Max.temperature, C110
Pressure, bar10
SealMechanical Seal, CAR/CER/EPDM
Impeller materialAISI 304 stainless steel
Shaft materialAISI 304 stainless steel
Housing materialAISI 304 stainless steel
Suction capacity (NPSH), m7
Serial number of the pumpEHX
Country of OriginItaly
PumpTypemulti-stage
Drive Typeelectric
Installation Typehorizontal
Type of configurationwith engine
Analogue forPentax ULTRA, Ebara MATRIX, Lowara HM
Weight, kg17
Length of transport packing, cm610
Width of transport packing, cm260
Height of transport packing, cm220
