Automatic electric fire extinguishing pumping station BEEJ 2500/12-430-40 (158 l/s, 120m, 315kW)

Code: 1042310
(0 review)
ProducerBTS Engineering
Pump capacity, cu.m/hour568
Feed height, m120
Power capacity, kW315
Materialcast iron
Rate of turn, rpm2 900
ProtectionIP55
Power supply3х380 V, 50 Hz
Max.temperature, C120
Nom.flow rate, m3/h568
Nom.head, m120
Nom.pressure, Mpa1,6
Jockey pump power, kW30
Country of OriginChina
Warranty, months12
Applicationemergency water supply, extinguishing
Show all features (16)
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
Italy: Pre-order only
$184 138,19 (netto)
Добавить в сравнение
We deliver anywhere in the world

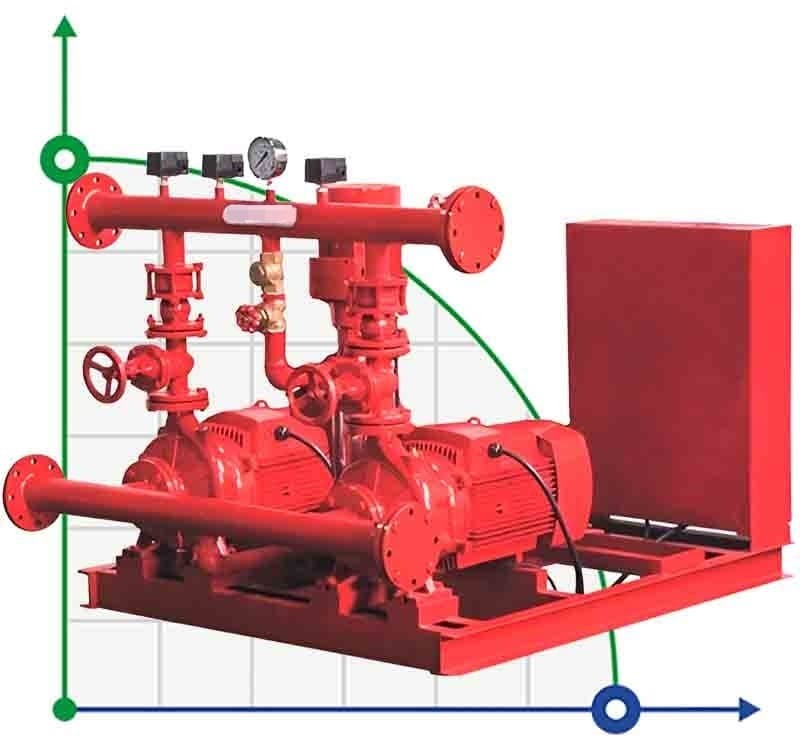

The BEEJ series electric fire pumping station consists of two electric centrifugal pumps with axial suction and a vertical electric jockey pump. The pumping station is equipped with a suction and pressure manifold, shut-off valves, vibrating inserts, pressure switches, control and measuring instruments, a frame and a control panel. Maximum capacity from 200 to 5700 l/min. Maximum pressure 1-14 bar. Advantages of pumping stations of this type - Automatic switching between pumps - Both manual and automatic modes are available - Availability of a jockey pump to maintain pressure in the fire extinguishing system - Easy installation - Highly efficient motor with IP55, class F protection - High performance and low power consumption - Pump casing with anti-corrosion coating - High-quality NSK bearings, wear-resistant mechanical seal - Various equipment options - Low maintenance and readily available spare parts.
ProducerBTS Engineering
Pump capacity, cu.m/hour568
Feed height, m120
Power capacity, kW315
Materialcast iron
Rate of turn, rpm2 900
ProtectionIP55
Power supply3х380 V, 50 Hz
Max.temperature, C120
Nom.flow rate, m3/h568
Nom.head, m120
Nom.pressure, Mpa1,6
Jockey pump power, kW30
Country of OriginChina
Warranty, months12
Applicationemergency water supply, extinguishing

Download instructions, catalog for Automatic electric fire extinguishing pumping station BEEJ 2500/12-430-40 (158 l/s, 120m, 315kW)
