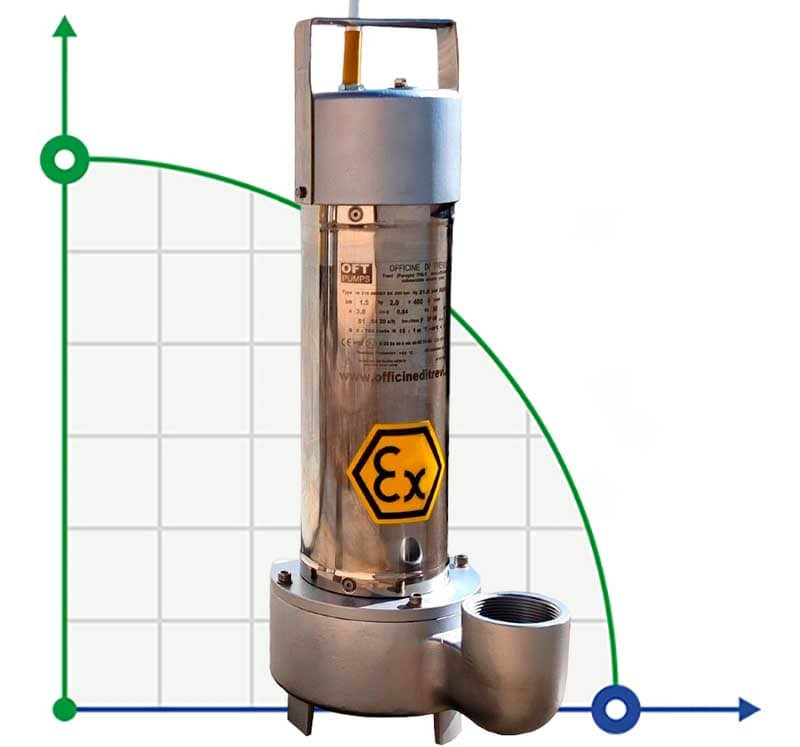

Drainage submersible pump ATEX 316 DERBY EX 75, 220V

Code: 1041448
(0 review)
ProducerOFT Pumps
Pump capacity, cu.m/hour30
Feed height, m9.5
Power capacity, kW0,55
MaterialAISI 316 stainless steel
Output pipe diameter2"
Rate of turn, rpm2 850
ProtectionIP68
Power supply1х220 V, 50 Hz
Explosion protectionYes
Max.flow rate, m3/h30
Max. head, m9.5
Max.temperature, C40
Dimensions, mm455x250
Impeller materialAISI 316 stainless steel
Cabel length,m5
Serial number of the pumpDERBY EX
Country of OriginItaly
PumpTypesubmersible drainage and fecal
Drive Typeelectric
Installation Typevertical
Warranty, months12
Weight, kg17,5
Show all features (23)
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
Italy: Pre-order only
Price on request
Добавить в сравнение
We deliver anywhere in the world
Applications of the OFT Pumps 316 DERBY EX series pump: leachate collection in storage tanks, pumping contaminated liquids, seawater and condensate. ATEX pumps in accordance with Directive 2014/34/EU can be installed in potentially explosive atmospheres in accordance with the ATEX marking. Features: open impeller made of 316 stainless steel to avoid clogging with dirt and other suspended fine solids. Pump casing and other components made of 316 SS stainless steel; electric pumps are supplied with a 5 m SK 4G1.5 electric cable included; temperature of the pumped liquid is no more than +40°C. Motor: 2-pole asynchronous motor, 50 Hz, 2850 rpm, insulation class F, protection IP68. Accessories: control panel, intrinsically safe module with ATEX power supply circuit, ATEX level controller with 5, 10 or 20 m electric cable, electronic ATEX level sensor, round cable H07RN-F or SK 4G1.5.
Category: Drainage pump
ProducerOFT Pumps
Pump capacity, cu.m/hour30
Feed height, m9.5
Power capacity, kW0,55
MaterialAISI 316 stainless steel
Output pipe diameter2"
Rate of turn, rpm2 850
ProtectionIP68
Power supply1х220 V, 50 Hz
Explosion protectionYes
Max.flow rate, m3/h30
Max. head, m9.5
Max.temperature, C40
Dimensions, mm455x250
Impeller materialAISI 316 stainless steel
Cabel length,m5
Serial number of the pumpDERBY EX
Country of OriginItaly
PumpTypesubmersible drainage and fecal
Drive Typeelectric
Installation Typevertical
Warranty, months12
Weight, kg17,5

Download instructions, catalog for Drainage submersible pump ATEX 316 DERBY EX 75, 220V
