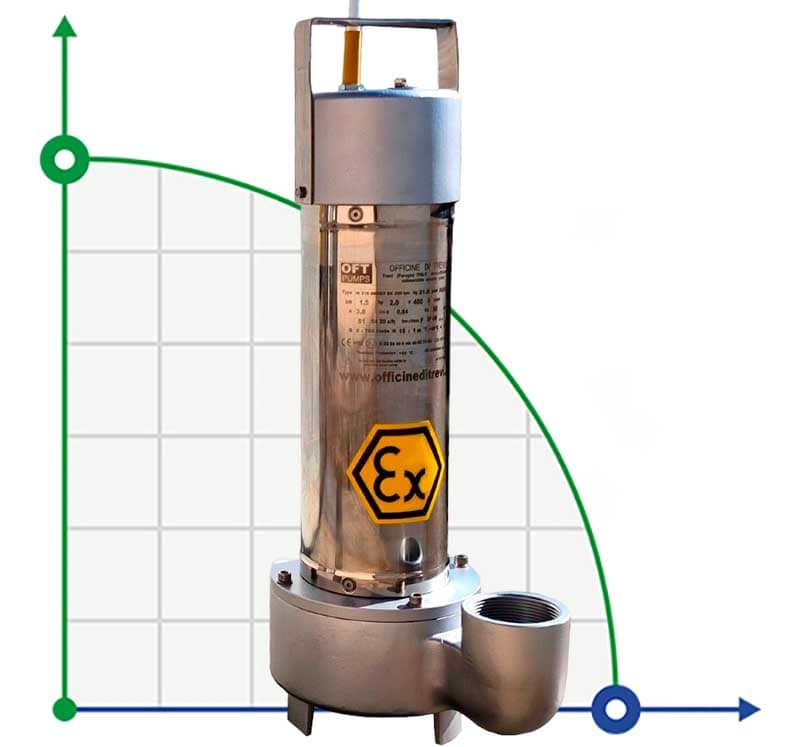

Drainage submersible pump ID 316 DERBY EX 100, 380V for hydrocarbons

Code: 1041474
(0 review)
ProducerOFT Pumps
Pump capacity, cu.m/hour39
Feed height, m11.5
Power capacity, kW0,75
MaterialAISI 316 stainless steel
Output pipe diameter2"
Rate of turn, rpm2 850
ProtectionIP68
Power supply3х380 V, 50 Hz
Explosion protectionYes
Max.flow rate, m3/h39
Max. head, m11.5
Max.temperature, C40
Dimensions, mm485x250
Impeller materialAISI 316 stainless steel
Cabel length,m5
Serial number of the pumpID DERBY EX
Country of OriginItaly
PumpTypesubmersible drainage and fecal
Drive Typeelectric
Installation Typevertical
Warranty, months12
Weight, kg19,1
Show all features (23)
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
Italy: Pre-order only
Price on request
Добавить в сравнение
We deliver anywhere in the world
Applications for the OFT Pumps ID 316 DERBY EX series: leachate collection and pumping, liquids contaminated with hydrocarbons and/or for particularly aggressive liquids. The ATEX pumps in accordance with Directive 2014/34/EU can be installed in potentially explosive atmospheres in accordance with the ATEX marking. Open impeller made of 316 stainless steel to avoid clogging by dirt and other suspended fine solids. Pump casing and other components made of 316 SS stainless steel. The pumps are supplied with a 5 m long 4G1.5 electric cable. Pumped liquid temperature: max. +40 °C. Special balanced mechanical seal, particularly durable and reliable, with high resistance to wear and chemically aggressive media. Motor is 2-pole asynchronous, 50 Hz, 2850 rpm. Insulation class F. Degree of protection IP68. Accessories: control panel, intrinsically safe module with ATEX power supply circuit, ATEX level controller with 5, 10 or 20 m electric cable, electronic level sensor ID ATEX, round cable ID 4G1.5.
Category: Drainage pump
ProducerOFT Pumps
Pump capacity, cu.m/hour39
Feed height, m11.5
Power capacity, kW0,75
MaterialAISI 316 stainless steel
Output pipe diameter2"
Rate of turn, rpm2 850
ProtectionIP68
Power supply3х380 V, 50 Hz
Explosion protectionYes
Max.flow rate, m3/h39
Max. head, m11.5
Max.temperature, C40
Dimensions, mm485x250
Impeller materialAISI 316 stainless steel
Cabel length,m5
Serial number of the pumpID DERBY EX
Country of OriginItaly
PumpTypesubmersible drainage and fecal
Drive Typeelectric
Installation Typevertical
Warranty, months12
Weight, kg19,1

Download instructions, catalog for Drainage submersible pump ID 316 DERBY EX 100, 380V for hydrocarbons
