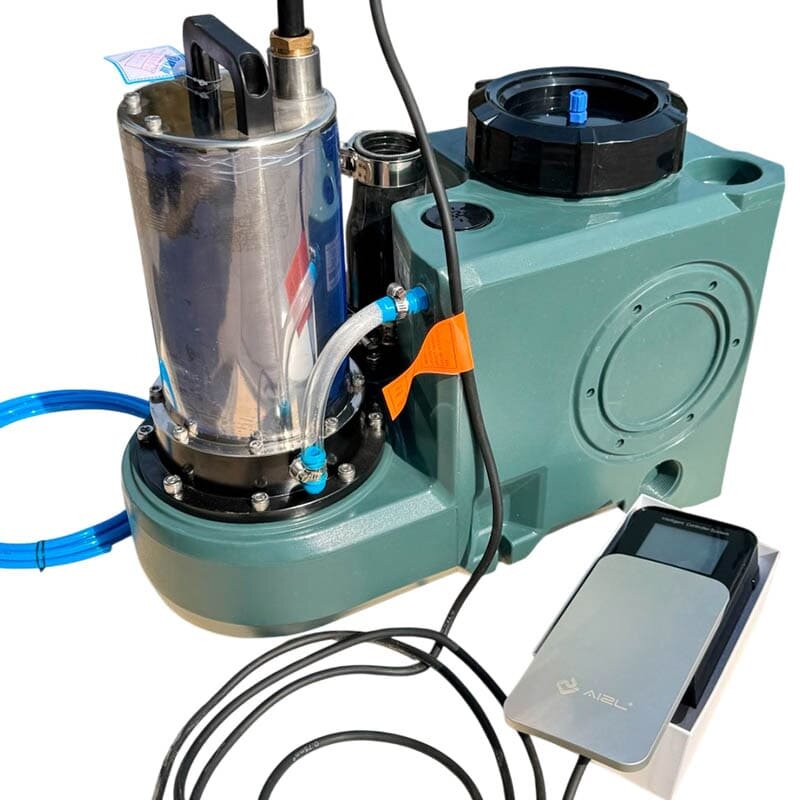

Solo lift with remote control AIZL-750W, 18/11.5, 0.75 kW, 220V, 2800 rpm

Code: 11009
(0 review)
ProducerAIZL
Pump capacity, m3/h18
Feed height, m11.5
Power capacity, kW0,75
Rate of turn, rpm2 800
Power supply1х220 V, 50 Hz
Max.flow rate, m3/h18
Max. head, m11.5
Max.temperature, C60
Dimensions, mm535x245x460
Flow rate, l/min300
Max.diameter of solid inclusions, mm40
Typeканалізаційна установка
Tank volume21
Serial number of the controllerAIZL-ICM
Country of OriginChina
PumpTypevortex
Drive Typeelectric
Weight, kg27
Show all features (19)
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
Italy: Pre-order only
$768 (netto) $933
Добавить в сравнение
We deliver anywhere in the world
Application: Suitable for sewage drainage from private basement bathrooms and kitchens in villas and large apartment complexes, offices, bomb shelters. Features: - 304 stainless steel oil-cooled motor, ensuring low noise during operation and extended service life. - S1 type large-diameter external vortex pump, preventing clogging and ensuring stable operation. - Pneumatic magnetic valve, closed when not in use, to prevent unpleasant odor. - AIZL-ICM intelligent controller - IoT function, remote control, debugging and push notification. - Uses a more advanced, accurate and stable electronic liquid level pressure sensor. - Double-sided mechanical seal and 150ml oil chamber for improved tightness. - Fully enclosed 21 liter HDPE container. - Flexible inlet connection with double seal to prevent clogging. - Flexible connection silent rotary check valve. - IP68 protection, fully submersible (except controller). - Inlets: 3×Φ110, 5×Φ50 - Pressure outlet: 1×Φ50 mm
ProducerAIZL
Pump capacity, m3/h18
Feed height, m11.5
Power capacity, kW0,75
Rate of turn, rpm2 800
Power supply1х220 V, 50 Hz
Max.flow rate, m3/h18
Max. head, m11.5
Max.temperature, C60
Dimensions, mm535x245x460
Flow rate, l/min300
Max.diameter of solid inclusions, mm40
Typeканалізаційна установка
Tank volume21
Serial number of the controllerAIZL-ICM
Country of OriginChina
PumpTypevortex
Drive Typeelectric
Weight, kg27

Download instructions, catalog for Solo lift with remote control AIZL-750W, 18/11.5, 0.75 kW, 220V, 2800 rpm
