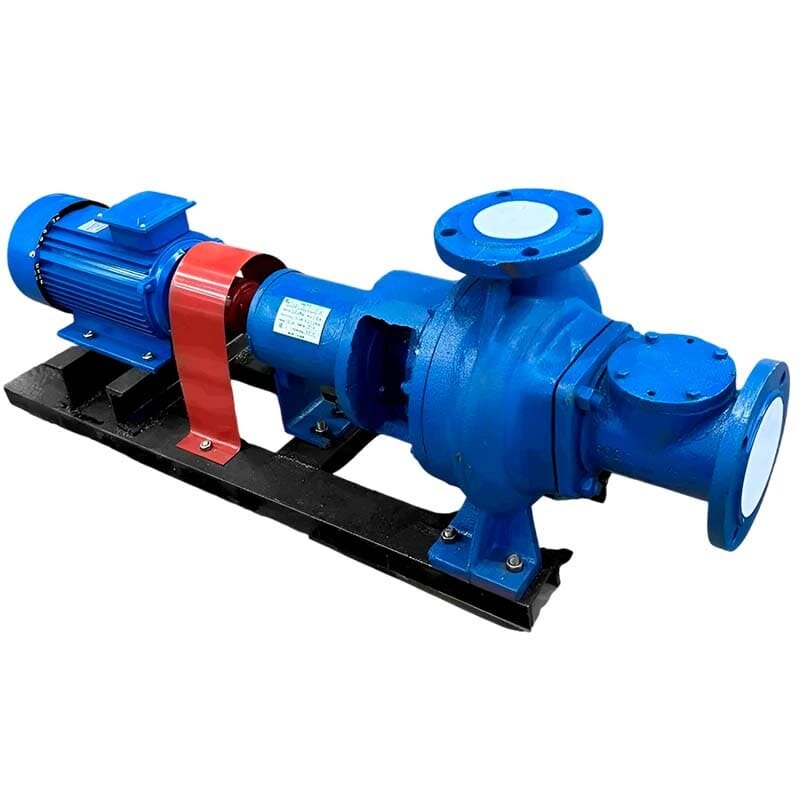

Pump unit for sewage and oily media 2CM 150-125-315/4b, 22 kW, 1500 rpm
Click image for a larger view
Pump unit for sewage and oily media 2CM 150-125-315/4b, 22 kW, 1500 rpm
Pump unit for sewage and oily media 2CM 150-125-315/4b, 22 kW, 1500 rpm
Pump unit for sewage and oily media 2CM 150-125-315/4b, 22 kW, 1500 rpm
Pump unit for sewage and oily media 2CM 150-125-315/4b, 22 kW, 1500 rpm
Pump unit for sewage and oily media 2CM 150-125-315/4b, 22 kW, 1500 rpm

Pump unit for sewage and oily media 2CM 150-125-315/4b, 22 kW, 1500 rpm

Code: 1058207
(0 review)
ProducerUkrnasosservis
Pump capacity, m3/h145
Feed height, m20.5
Power capacity, kW22
Materialcast iron
Input pipe diameterDN150
Output pipe diameterDN125
Rate of turn, rpm1 500
Power supply3х380 V, 50 Hz
Explosion protectionNo
Max.temperature, C90
Nom.flow rate, m3/h145
Nom.head, m20.5
Impeller materialcast iron
Max.diameter of solid inclusions, mm58
Housing materialСast iron
Serial number of the pump2CM
Country of OriginUkraine
PumpTypeповерхностный дренажно-фекальный
Drive Typeelectric
Installation Typehorizontal
Type of configurationwith engine
Weight, kg560
Show all features (23)
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
Italy: Pre-order only
$2 447 (netto)
Buy in 1 click
Добавить в сравнение
We deliver anywhere in the world
CM and 2CM industrial sewage pumps – centrifugal, horizontal, single-stage pumps with a closed impeller – are designed for pumping dirty water, domestic and industrial wastewater (sewage), sewage and other contaminated liquids with a pH of 6–8.5, a density of up to 1100 kg/m³, a temperature of 0–+90°C, and a content of abrasive particles not exceeding 1% by volume, with a size of up to 5 mm and a microhardness of no more than 9000 MPa. The difference between CM and 2CM pumps lies in the 2CM model having a pressure cap, which increases the pump’s self-priming head.
Category: Surface-mounted sewage pump
ProducerUkrnasosservis
Pump capacity, m3/h145
Feed height, m20.5
Power capacity, kW22
Materialcast iron
Input pipe diameterDN150
Output pipe diameterDN125
Rate of turn, rpm1 500
Power supply3х380 V, 50 Hz
Explosion protectionNo
Max.temperature, C90
Nom.flow rate, m3/h145
Nom.head, m20.5
Impeller materialcast iron
Max.diameter of solid inclusions, mm58
Housing materialСast iron
Serial number of the pump2CM
Country of OriginUkraine
PumpTypeповерхностный дренажно-фекальный
Drive Typeelectric
Installation Typehorizontal
Type of configurationwith engine
Weight, kg560
