ESCE 125-350 (380) - Double Suction Split Case Pump Without Engine
Click image for a larger view
ESCE 125-350 (380) - Double Suction Split Case Pump Without Engine
ESCE 125-350 (380) - Double Suction Split Case Pump Without Engine

ESCE 125-350 (380) - Double Suction Split Case Pump Without Engine

Code: 1022037
(0 review)
ProducerERDURO
Pump capacity, cu.m/hour420
Feed height, m54
Power capacity, kW30, 37, 45, 55, 75, 90
Input pipe diameterDN200
Output pipe diameterDN125
Max.flow rate, m3/h420
Max. head, m54
Country of OriginTurkey
PumpTypetwo-way entrance
Drive Typeelectric
Warranty, months12
Show all features (12)
Documentation
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
Italy: Pre-order only
$5 612,47 (netto)
Добавить в сравнение
We deliver anywhere in the world
Split Case Centrifugal Pumps BCSE - Suction and discharge flanges are on the same axis at the bottom casing. - Split case design permits easy disassembly of the rotor group for maintenance or repair without distorting pump alignment and suction and discharge piping. - Impeller is double suction. - This feature increases pump suction performance in addition it provides the balance of hydraulic axial forces. - Flanges are conforming to ISO 7005-2 / PN 16 or PN 25. - All impellers are balanced statically and dynamically according to ISO 1940 class 6.3. - Sealing is provided by gland packing, also it can be mechanical seal according to customer request.
Category: Double-sided inlet pump of type D
ProducerERDURO
Pump capacity, cu.m/hour420
Feed height, m54
Power capacity, kW30, 37, 45, 55, 75, 90
Input pipe diameterDN200
Output pipe diameterDN125
Max.flow rate, m3/h420
Max. head, m54
Country of OriginTurkey
PumpTypetwo-way entrance
Drive Typeelectric
Warranty, months12
Loading...
Also buy with this product
Pump Сontroller Y1-4000D, ABS plastic, 3-phase 380V-415V, 0,75-4kW
Pump Сontroller Y1-4000D, ABS plastic, 3-phase 380V-415V, 0,75-4kW
1042834
Producer
BTS Engineering
Power capacity, kW
0,75-4
In stock
0
$135,86
PN6 DN100 Wafer butterfly valve, body and disc AISI 304, PTFE, Single-acting (with spring) Pneumatic actuator Ex+positioner 4-20MA
PN6 DN100 Wafer butterfly valve, body and disc AISI 304, PTFE, Single-acting ...
1042673
Material of the disk
AISI 304 stainless steel
Control signal, mA
4-20
Preorder
0
$1 719,35
Pump Сontroller 20Y-3000, ABS plastic, 1-phase 220V-240V, 0,37-3kW
Pump Сontroller 20Y-3000, ABS plastic, 1-phase 220V-240V, 0,37-3kW
1042833
Producer
BTS Engineering
Power capacity, kW
0,37-3
In stock
0
$90,59
DN40 Thermodynamic flanged condensate trap PN16/1.0619
DN40 Thermodynamic flanged condensate trap PN16/1.0619
1040126
Producer
BTS Engineering
Nom.pressure, Mpa
1,6
In stock
0
$465,14
DN25 Pneumatically actuated control valve 10P11Y-DNx2516Z-L112C-C (CF8 body, SS304 seat) with YT-1000 positioner, 4-20mA input, Ex
DN25 Pneumatically actuated control valve 10P11Y-DNx2516Z-L112C-C (CF8 body, ...
1040256
Control signal, mA
4-20
Mode of action
normally closed
Preorder
0
$2 371,63
PN6 DN150 Wafer butterfly valve, body and disc AISI 304, PTFE, Double acting Pneumatic actuator Ex+positioner 4-20MA
PN6 DN150 Wafer butterfly valve, body and disc AISI 304, PTFE, Double acting ...
1042674
Material of the disk
AISI 304 stainless steel
Control signal, mA
4-20
In stock
0
$1 744,65
Control panel for pump, 4 kW
Control panel for pump, 4 kW
16607
Producer
BTS Engineering
Power capacity, kW
4
In stock
0
$470,20
PN16 DN65 Butterfly valve, body and disc made of stainless steel AISI 304, Seat PTFE
PN16 DN65 Butterfly valve, body and disc made of stainless steel AISI 304, Se...
1042540
Material of the disk
AISI 304 stainless steel
Producer
BTS Engineering
In stock
0
$68,21
Control panel for pump, 1.5 kW
Control panel for pump, 1.5 kW
16606
Producer
BTS Engineering
Power capacity, kW
1,5
In stock
0
$248,38
PN16 DN80 Butterfly valve, body and disc made of stainless steel AISI 304, Seat PTFE
PN16 DN80 Butterfly valve, body and disc made of stainless steel AISI 304, Se...
1042541
Material of the disk
AISI 304 stainless steel
Producer
BTS Engineering
In stock
0
$75,11
Pump Сontroller Y1-7500D, ABS plastic, 3-phase 380V-415V, 1,1-7,5 kW
Pump Сontroller Y1-7500D, ABS plastic, 3-phase 380V-415V, 1,1-7,5 kW
1042835
Producer
BTS Engineering
Power capacity, kW
1,1-7,5
In stock
0
$144,39
Pump Сontroller Y1-11000D, ABS plastic, 3-phase 380V-415V, 1,1-11kW
Pump Сontroller Y1-11000D, ABS plastic, 3-phase 380V-415V, 1,1-11kW
1042836
Producer
BTS Engineering
Power capacity, kW
1,1-11
In stock
0
$155,70
PN16 DN125 Butterfly valve, cast iron body, AISI 304 disc, Seat EPDM
PN16 DN125 Butterfly valve, cast iron body, AISI 304 disc, Seat EPDM
1042552
Material of the disk
AISI 304 stainless steel
Producer
BTS Engineering
In stock
0
$64,97
Pump Сontroller Y1-15000D, ABS plastic, 3-phase 380V-415V, 2,2-15 kW
Pump Сontroller Y1-15000D, ABS plastic, 3-phase 380V-415V, 2,2-15 kW
1042837
Producer
BTS Engineering
Power capacity, kW
2,2-15
In stock
0
$181,17
Control panel for pump, 3 kW
Control panel for pump, 3 kW
16604
Producer
BTS Engineering
Power capacity, kW
3
In stock
0
$457,34
Pump Сontroller Y1-18500D, ABS plastic, 3-phase 380V-415V, 3-18,5kW
Pump Сontroller Y1-18500D, ABS plastic, 3-phase 380V-415V, 3-18,5kW
1042838
Producer
BTS Engineering
Power capacity, kW
3-18,5
In stock
0
$220,78
Pump Сontroller Y1-22000D, ABS plastic, 3-phase 380V-415V, 4-22kW
Pump Сontroller Y1-22000D, ABS plastic, 3-phase 380V-415V, 4-22kW
1042839
Producer
BTS Engineering
Power capacity, kW
4-22
In stock
0
$260,42
Control panel for pump, 5.5 kW
Control panel for pump, 5.5 kW
16610
Producer
BTS Engineering
Power capacity, kW
5,5
In stock
0
$485,99
PN16 DN100 Butterfly valve, cast iron body, AISI 304 disc, Seat EPDM
PN16 DN100 Butterfly valve, cast iron body, AISI 304 disc, Seat EPDM
1042551
Material of the disk
AISI 304 stainless steel
Producer
BTS Engineering
In stock
0
$46,40
Control panel for pump, 2.2 kW
Control panel for pump, 2.2 kW
16605
Producer
BTS Engineering
Power capacity, kW
2,2
In stock
0
$332,18
Control panel for pump, 7.5 kW
Control panel for pump, 7.5 kW
16608
Producer
BTS Engineering
Power capacity, kW
7,5
In stock
0
$493,49
PN16 DN65 Stainless steel ball valve AISI 316, Seat: PTFE
PN16 DN65 Stainless steel ball valve AISI 316, Seat: PTFE
1040107
Producer
BTS Engineering
Nom.pressure, Mpa
1,6
In stock
0
$321,75
Control panel for pump, 22 kW
Control panel for pump, 22 kW
16613
Producer
BTS Engineering
Power capacity, kW
22
In stock
0
$1 896,86
Control panel for pump, 11 kW
Control panel for pump, 11 kW
16609
Producer
BTS Engineering
Power capacity, kW
11
In stock
0
$509,57
PN16 DN50 Stainless steel ball valve AISI 316, seat PTFE
PN16 DN50 Stainless steel ball valve AISI 316, seat PTFE
1040108
Producer
BTS Engineering
Nom.pressure, Mpa
1,6
In stock
0
$235,16
Control panel for pump, 18.5 kW
Control panel for pump, 18.5 kW
16612
Producer
BTS Engineering
Power capacity, kW
18,5
In stock
0
$823,76
Control panel for pump, 15 kW
Control panel for pump, 15 kW
16611
Producer
BTS Engineering
Power capacity, kW
15
Preorder
0
$683,06
Products from the same category
BSC4 350-360A/B, (1500) Double Suction Split Case Pump
BSC4 350-360A/B, (1500) Double Suction Split Case Pump
1023050
Producer
BTS Engineering
Pump capacity, cu.m/hour
1731
Pre-order only
0
$15 872,45
BSC4 350-430A/B, (1500) Double Suction Split Case Pump
BSC4 350-430A/B, (1500) Double Suction Split Case Pump
1023051
Producer
BTS Engineering
Pump capacity, cu.m/hour
2743
Pre-order only
0
$23 172,16
BSC4 350-510A/B, (1500) Double Suction Split Case Pump
BSC4 350-510A/B, (1500) Double Suction Split Case Pump
1023052
Producer
BTS Engineering
Pump capacity, cu.m/hour
2610
Pre-order only
0
$22 329,35
BSC4 350-590A, (1500) Double Suction Split Case Pump
BSC4 350-590A, (1500) Double Suction Split Case Pump
1023053
Producer
BTS Engineering
Pump capacity, cu.m/hour
3795
Pre-order only
0
$39 558,89
BSC4 350-590A1, (1000) Double Suction Split Case Pump
BSC4 350-590A1, (1000) Double Suction Split Case Pump
1023502
Producer
BTS Engineering
Pump capacity, cu.m/hour
90
Pre-order only
0
$42 105,11
BSCE 150-315(1500) - Double Suction Split Case Pump Without Engine
BSCE 150-315(1500) - Double Suction Split Case Pump Without Engine
1022038
Producer
ERDURO
Pump capacity, cu.m/hour
690
Pre-order only
0
$6 088,70
BSCE 150-600(1500) - Double Suction Split Case Pump Without Engine
BSCE 150-600(1500) - Double Suction Split Case Pump Without Engine
1022039
Producer
ERDURO
Pump capacity, cu.m/hour
800
Pre-order only
0
$8 251,31

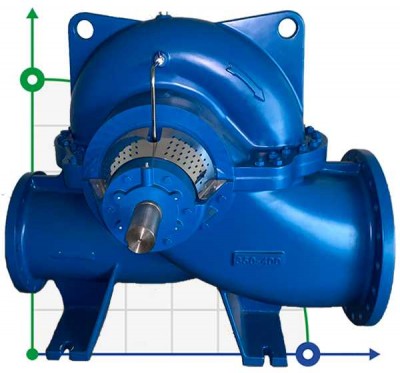

BSCE 200-430(1500) - Double Suction Split Case Pump Without Engine
