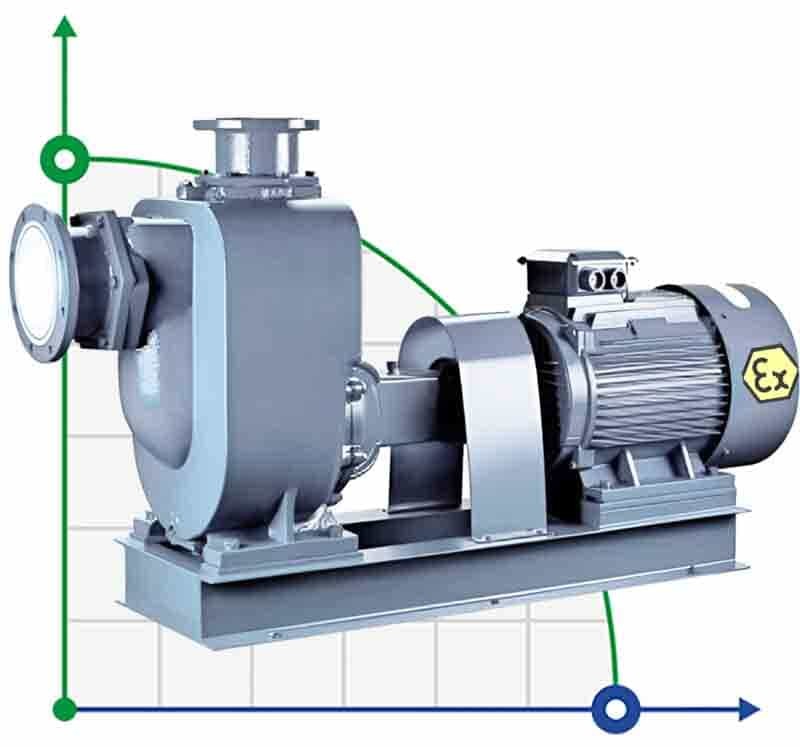

Self-priming stainless steel pump BZWHB100-80-60/2, 37kW, 2900, Ex for fuel

Code: 1042153
(0 review)
ProducerBTS Engineering
Pump capacity, cu.m/hour80
Feed height, m60
Power capacity, kW37
MaterialAISI 304 stainless steel
Input pipe diameter100
Output pipe diameter100
Rate of turn, rpm2 900
ProtectionIP55
Power supply3х380 V, 50 Hz
Explosion protectionYes
Max.temperature, C80
Nom.flow rate, m3/h80
Nom.head, m60
SealMechanical Seal, Carbon-SiC-NBR
Serial number of the pumpBZWHB
Country of OriginChina
PumpTypeconsole
Drive Typeelectric
Installation Typehorizontal
Type of configurationwith engine
Warranty, months12
Show all features (22)
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
Italy: Pre-order only
Price on request
Добавить в сравнение
We deliver anywhere in the world
Self-priming stainless steel pump BZWHB. The impeller is a closed type with two blades, with wide channels for clean and dirty liquids with impurities. The pumping part is connected to the motor via a coupling, which guarantees quick recovery of the pump in case of electric drive failures. High electrical and hydraulic efficiency. High self-priming rate without the use of a check valve (4.5 - 6.0 m.v.s.). The self-priming capability is realised due to the presence of a pre-filling chamber in the pump casing. The pumps of this model are suitable for the chemical, oil, pharmaceutical, mining, paper, fibre, pulp, textile, food, power plants and municipal sewage facilities, public sewage, wastewater, river ponds and other industries.
ProducerBTS Engineering
Pump capacity, cu.m/hour80
Feed height, m60
Power capacity, kW37
MaterialAISI 304 stainless steel
Input pipe diameter100
Output pipe diameter100
Rate of turn, rpm2 900
ProtectionIP55
Power supply3х380 V, 50 Hz
Explosion protectionYes
Max.temperature, C80
Nom.flow rate, m3/h80
Nom.head, m60
SealMechanical Seal, Carbon-SiC-NBR
Serial number of the pumpBZWHB
Country of OriginChina
PumpTypeconsole
Drive Typeelectric
Installation Typehorizontal
Type of configurationwith engine
Warranty, months12
