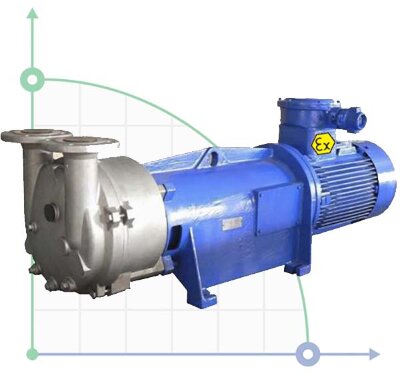

Vacuum pump of water ring type VVN1-3 (VVN-3/0,4).
Designed to create vacuum when working on air or inert gases insoluble in water. To ensure the operation of the vacuum pump it is necessary to supply running water or a tank with a receiver.
The pump capacity can be up to 180 m³/hour. The pump stands on a common frame and is attached to the electric motor by means of a sleeve-finger coupling.
Electric pump BBH1-3 is widely used in food, woodworking, chemical, tobacco and confectionery factories, as well as in gas and other industries.
Capacity: 3 m3/min
Initial pressure: 0.04 MPa
final pressure: 0.1013 MPa
Water flow rate: 0.12 l/s
Power consumption: 4.85 kW
Shaft speed: 1500 rpm
Overall dimensions of the pump without drive: 660x350x350mm.
Weight: 110kg.
