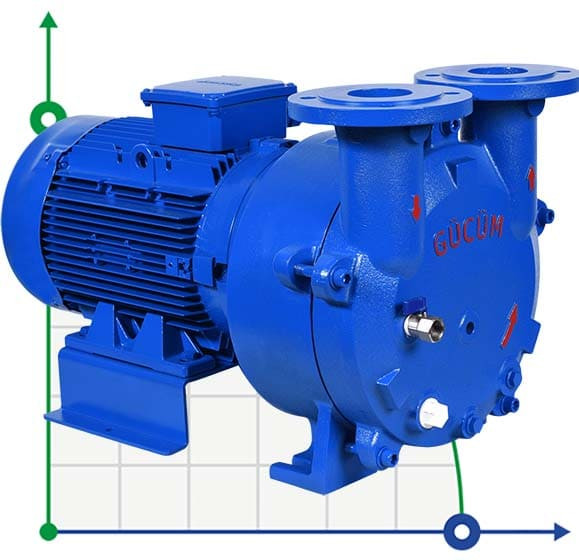

GMVP 200/085 monoblock vacuum pump

Code: 1038954
(0 review)
ProducerGÜCÜM
Pump capacity, cu.m/hour95
Power capacity, kW4
Input pipe diameterDN 40
Output pipe diameterDN 40
Rate of turn, rpm1 450
ProtectionIP55
Noise level ,dB73
Power supply3х380 V, 50 Hz
Explosion protectionNo
Max.flow rate, m3/h95
Impeller materialbronze
Housing materialСast iron
Vacuum depth, mBar33
Flow, l/min16
Serial number of the pumpGMVP
Country of OriginTurkey
PumpTypevacuum
Drive Typeelectric
Installation Typehorizontal
Weight, kg72
Show all features (21)
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
Italy: Pre-order only
$2 003,98 (netto)
Добавить в сравнение
We deliver anywhere in the world
The pumps are designed for pumping dry and wet gases, and can handle a small amount of liquid. They are used in areas where a vacuum of 1013 to 33 mbar is required. During pump operation, service fluid must be supplied to replenish the ring from the liquid and cool the pump (usually water is used). The pumped liquid can be reused after gas separation. The direction of rotation is clockwise when viewed from the electric motor side of the pump. Single stage water ring vacuum pumps have the following features: - capable of pumping out any gases and vapors; - they are able to process a small amount of liquid together with gases; - do not use oil and do not require lubrication; - the pumped gases do not come into contact with the oils; - require minimal maintenance and high efficiency; - metal rotating parts do not come into contact with each other; - the shaft does not come into contact with the pumped medium; - they work with low noise and vibration levels; - almost everywhere there is a suitable option for choosing materials.
ProducerGÜCÜM
Pump capacity, cu.m/hour95
Power capacity, kW4
Input pipe diameterDN 40
Output pipe diameterDN 40
Rate of turn, rpm1 450
ProtectionIP55
Noise level ,dB73
Power supply3х380 V, 50 Hz
Explosion protectionNo
Max.flow rate, m3/h95
Impeller materialbronze
Housing materialСast iron
Vacuum depth, mBar33
Flow, l/min16
Serial number of the pumpGMVP
Country of OriginTurkey
PumpTypevacuum
Drive Typeelectric
Installation Typehorizontal
Weight, kg72
