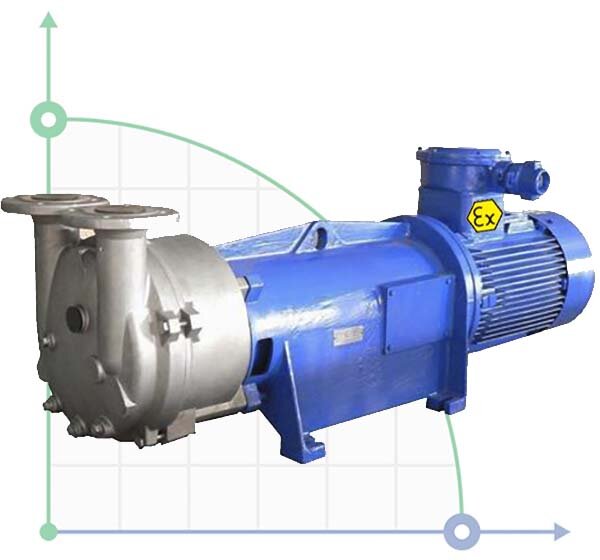

Vacuum pump 2BV6131 Ex (AISI 316)

Code: 1057387
(0 review)
ProducerBTS Engineering
Pump capacity, m3/h400
Power capacity, kW11
Input pipe diameterDN80
Output pipe diameterDN80
Rate of turn, rpm1 450
Noise level ,dB73
Power supply3х380 V, 50 Hz
Explosion protectionYes
Max.flow rate, m3/h400
Material of flow channelAISI 316 stainless steel
SealMechanical Seal
Vacuum depth, mBar33
Flow, l/min15
PumpTypevacuum
Drive Typeelectric
Installation Typehorizontal
Type of configurationwith engine
Analogue forВВН, Busch, Becker, DVP, Sterling, Italvacuum, Robuschi, EVP, Vacuummash, Pompetravaini TRM, Nitto, Elmo rietschle
Weight, kg324
Show all features (20)
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
Italy: Pre-order only
Price on request
Buy in 1 click
Добавить в сравнение
We deliver anywhere in the world
2BV6131 Vacuum Water Ring Pump - VWR only water can be used as a working medium. The vacuum water ring pump is used in systems for pumping inert gases insoluble in water, corrosive gases or simply for air vacuuming (creating a vacuum). "Water-ring" means that the working fluid is water. The wide application speaks to the versatility of the unit and its performance properties. Features: - Coaxial connection of pump and motor saves space - Imported bearings. - Standard mechanical sealing is used to eliminate leaks and ease maintenance. The noise level can be as low as 62 dB. - The pump casing is made of corrosion-resistant stainless steel and the impeller is made of bronze. - The 2BV vacuum pump is widely used in the chemical, medical, food, sugar industries, etc.
ProducerBTS Engineering
Pump capacity, m3/h400
Power capacity, kW11
Input pipe diameterDN80
Output pipe diameterDN80
Rate of turn, rpm1 450
Noise level ,dB73
Power supply3х380 V, 50 Hz
Explosion protectionYes
Max.flow rate, m3/h400
Material of flow channelAISI 316 stainless steel
SealMechanical Seal
Vacuum depth, mBar33
Flow, l/min15
PumpTypevacuum
Drive Typeelectric
Installation Typehorizontal
Type of configurationwith engine
Analogue forВВН, Busch, Becker, DVP, Sterling, Italvacuum, Robuschi, EVP, Vacuummash, Pompetravaini TRM, Nitto, Elmo rietschle
Weight, kg324
