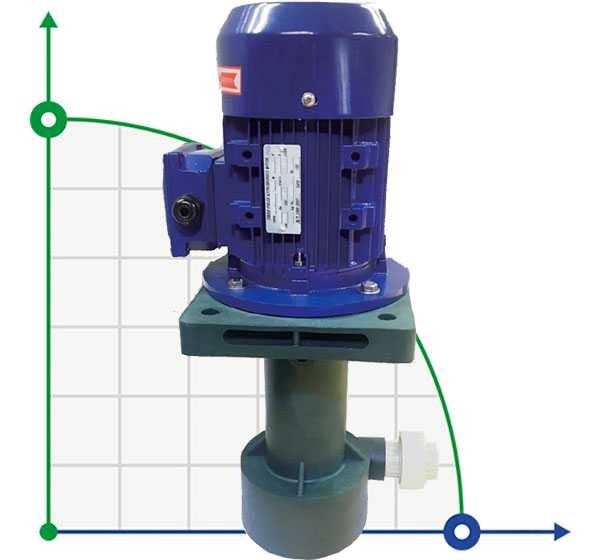

QP-40SK, CFRETFE-0,75 kW, 240 l/min, 11m chemical pump

Code: 1023101
(0 review)
ProducerQeehua
Pump capacity, cu.m/hour14.4
Feed height, m11
Power capacity, kW0,75
MaterialCFRETFE
Input pipe diameter50 mm
Output pipe diameter40 mm
Power supply3х380 V, 50 Hz
Max.flow rate, m3/h14.4
Max. head, m11
Max.temperature, C90
Dimensions, mm285x230x550
ModelQP-40SK-0,75kW
Length of immersed part315
Serial number of the pumpQP
PumpTypesemi-submersible
Drive Typeelectric
Installation Typevertical
Type of configurationwith engine
Weight, kg20
Show all features (20)
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
Italy: Pre-order only
$2 580,03 (netto)
Добавить в сравнение
We deliver anywhere in the world
Pump for electroplating, electrolytes, acids, alkali semi-submersible or external installation, electrolyte, preparation of SIP (Sip), aggressive liquids-also found wide application in filtration installations, purification of chemically active acids, alkalis. Vertical centrifugal pump QP-40SK, CFRETFE-0,75 kW, 240l/min, 11m. Material: CFRETFE Pump installation-semi-submersible, external installation. The semi-submersible pump can be installed outdoors or in a convenient place, which allows you to provide the filtration supply system with compact dimensions, convenient maintenance and control. Pump materials, depending on the technology requirements, are presented in various options for selection. - extended warranty - maintenance and delivery of spare parts It can be equipped with an explosion-proof ex engine. Control the temperature regime when mixing chemical liquids to prevent pump failure.
ProducerQeehua
Pump capacity, cu.m/hour14.4
Feed height, m11
Power capacity, kW0,75
MaterialCFRETFE
Input pipe diameter50 mm
Output pipe diameter40 mm
Power supply3х380 V, 50 Hz
Max.flow rate, m3/h14.4
Max. head, m11
Max.temperature, C90
Dimensions, mm285x230x550
ModelQP-40SK-0,75kW
Length of immersed part315
Serial number of the pumpQP
PumpTypesemi-submersible
Drive Typeelectric
Installation Typevertical
Type of configurationwith engine
Weight, kg20
