| Stationary and rotating face | SIC/SIC |
| Material of metal part | AISI 304 stainless steel |
| Shaft diameter | 20 |
| Outer diameter of the fixed ring, mm | 35 |
| Producer | BTS Engineering |
| Rate of turn, rpm | 5 000 |
| Pressure | 0,3 MPa |
| Operating temperature | -20°C +100°C |
| Seal type | R-6SB |
| Rubber type | EPDM |
| Application | Sprut, HYPRO, Honda, Matari, SOMA, Odwerk |
| Gross weight, kg | 0.1 |
| Length of transport packing, cm | 5,5 |
| Width of transport packing, cm | 5 |
| Height of transport packing, cm | 5 |
| Stationary and rotating face | SIC/SIC |
| Material of metal part | AISI 304 stainless steel |
| Shaft diameter | 20 |
| Outer diameter of the fixed ring, mm | 35 |
| Producer | BTS Engineering |
| Rate of turn, rpm | 5 000 |
| Pressure | 0,3 MPa |
| Operating temperature | -20°C +100°C |
| Seal type | R-6SB |
| Rubber type | EPDM |
| Application | Sprut, HYPRO, Honda, Matari, SOMA, Odwerk |
| Gross weight, kg | 0.1 |
| Length of transport packing, cm | 5,5 |
| Width of transport packing, cm | 5 |
| Height of transport packing, cm | 5 |

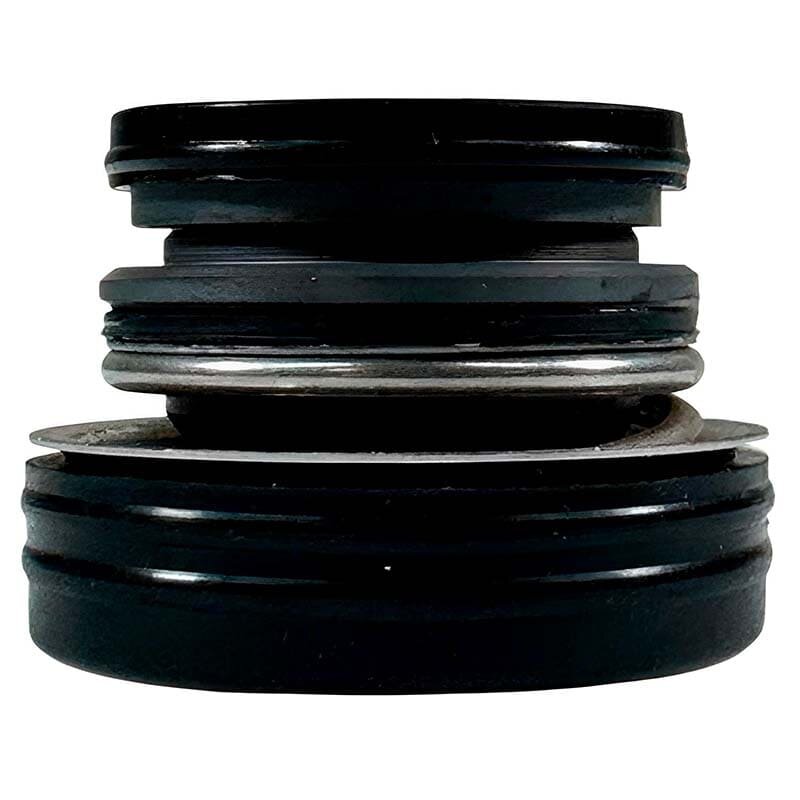

Download instructions, catalog for Mechanical seal R-6SB 16, SIC/SIC, EPDM, 304
