Name: Mechanical seal R-BT-FN 16, SIC/SIC, EPDM, 304
Brand: BTS Engineering
SKU: 13717_16__SIC/SIC__EPDM__304

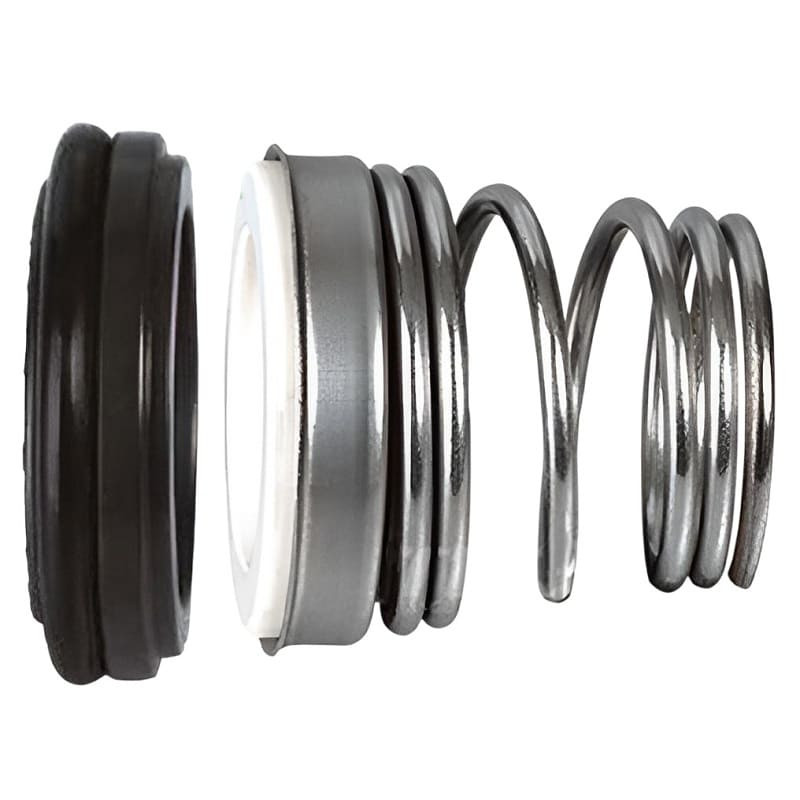

Mechanical seal R-BT-FN 16, SIC/SIC, EPDM, 304

Click image for a larger view

-5%

Code: 13717_16__SIC/SIC__EPDM__304

(0 review)

Producer	BTS Engineering
Shaft diameter	16
Rubber type	EPDM
Material of metal part	304
Stationary and rotating face	SIC/SIC
Pressure	1.4 MPa
Operating temperature	-40°C +180°C
Seal type	R-BT-FN
Rotation velocity	15 m/s
Application	Calpeda, Ebara, Sprut, GTP, NMSHG, GESPASA, SAER, Pedrollo, LOWARA, Foras, DWO, ALLWEILER, Pentax, Speck pumpen, DAB, KM, Inoxpa, WILO, Speroni
Analogue for	Hermetica М112К.FR, Roplan R62, Sterling SR3, DIMER TCO.15-12, US SEAL VGMB, Burgmann BT-FN, AESSEAL T04, Vulcan 13, Roten 3, Flowserve 43, Latty T901, LIDERING FN, LIDERING LS15
Gross weight, kg	0.25
Length of transport packing, cm	8
Width of transport packing, cm	8
Height of transport packing, cm	10

Show all features (15)

Documentation

Description Mechanical seal R-BT-FN 16, SIC/SIC, EPDM, 304

Single mechanical seal with conical spring and one-way direction of rotation. Used in pumps and circulation pumps. Possible application in pumps Lowara (CEA120), Calpeda (NM, MXH, MPC, GXC / GXV), Ebara (CDX, 2CDX, CDXM), Pedrolo (F) and others. Analog mechanical seals: Burgmann BT-FN, Roten 3, Vulcan 13. Mechanical seal for Wilo pump, K, KM, X, AH, AHP, AH, Calpeda, DAB, Ebara, Grundfos, pump KSB, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam, pump SPERONI, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK, pump Tuchenhagen, ALFA LAVAL, Donjoy, Mission Magnum.

Categories: R-BT-FN Mechanical seal for Nocchi pump

Features Mechanical seal R-BT-FN 16, SIC/SIC, EPDM, 304

Producer	BTS Engineering
Shaft diameter	16
Rubber type	EPDM
Material of metal part	304
Stationary and rotating face	SIC/SIC
Pressure	1.4 MPa
Operating temperature	-40°C +180°C
Seal type	R-BT-FN
Rotation velocity	15 m/s
Application	Calpeda, Ebara, Sprut, GTP, NMSHG, GESPASA, SAER, Pedrollo, LOWARA, Foras, DWO, ALLWEILER, Pentax, Speck pumpen, DAB, KM, Inoxpa, WILO, Speroni
Analogue for	Hermetica М112К.FR, Roplan R62, Sterling SR3, DIMER TCO.15-12, US SEAL VGMB, Burgmann BT-FN, AESSEAL T04, Vulcan 13, Roten 3, Flowserve 43, Latty T901, LIDERING FN, LIDERING LS15
Gross weight, kg	0.25
Length of transport packing, cm	8
Width of transport packing, cm	8
Height of transport packing, cm	10
