The left half of the central unit of the FLUIMAC PHOENIX P07 pump. Material: PP. ITEM NUMBER: P0007CC000014PP. Position on the parsing diagram: 1s.

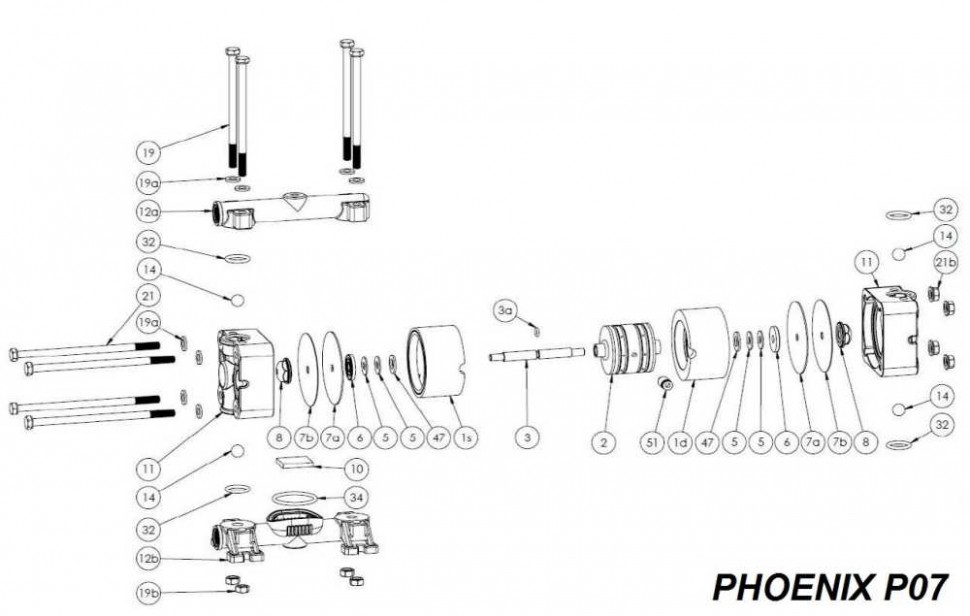

General scheme of disassembly of the PHOENIX P07 pump:
1d Right half of the central unit
1s Left half of the central unit
2 Pneumatic heat exchanger
3 Shaft
3a Shaft sealing ring
5 Disc spring
6 Air side cover
7a Air side membrane
7b Diaphragm on the liquid side
8 Plug
10 Silencer
11 Pump housing
12a Upper collector
12b Lower collector
14 Ball
19 Screw collector
19a Washer housing / collector
19b Spanner manifold
21 Screw casing
21b Nuts for housing
32 Upper O-ring
34 Muffler O-ring
47 Spacer
51 Pneumatic highway
