Pneumatic highway, BRASS, PHOENIX P07

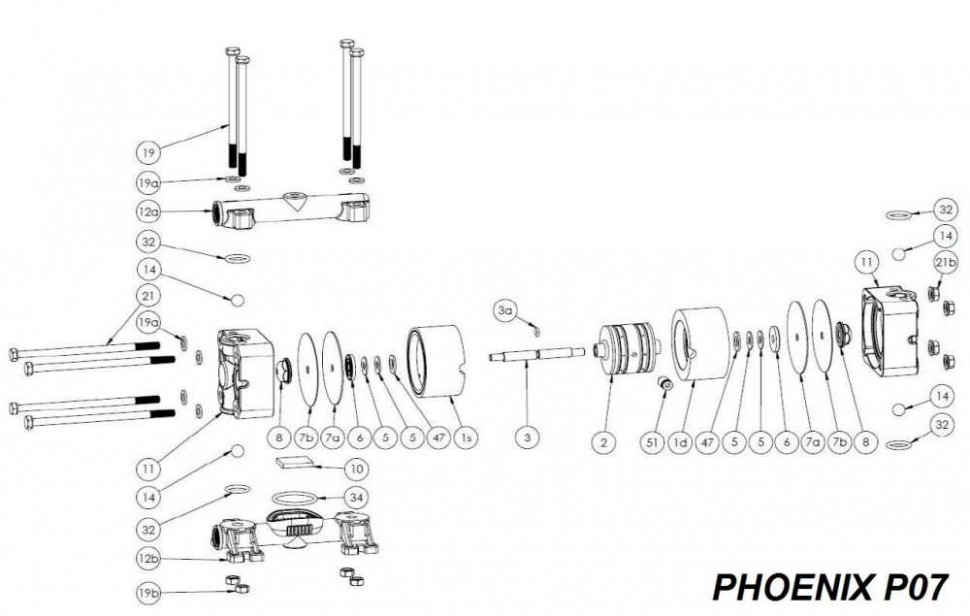

FLUIMAC PHOENIX P07 pneumatic line pump. Material: BRASS. ITEM NUMBER: RACCOMM04005OT. Position on the parsing scheme: 51. General scheme of disassembly of the PHOENIX P07 pump: 1d Right half of the central unit 1s Left half of the central unit 2 Pneumatic heat exchanger 3 Shaft 3a Shaft sealing ring 5 Disc spring 6 Air side cover 7a Air side membrane 7b Diaphragm on the liquid side 8 Plug 10 Silencer 11 Pump housing 12a Upper collector 12b Lower collector 14 Ball 19 Screw collector 19a Washer housing / collector 19b Spanner manifold 21 Screw casing 21b Nuts for housing 32 Upper O-ring 34 Muffler O-ring 47 Spacer 51 Pneumatic highway
