Name: BZ 40-200/7,5 centrifugal monoblock pump (AISI)
Brand: BTS Engineering
SKU: 1019127

Product list

Home
PROM-NASOS - Pumps
Industrial pumps
Cantilever centrifugal pump
BZ 40-200/7,5 centrifugal monoblock pump (AISI)

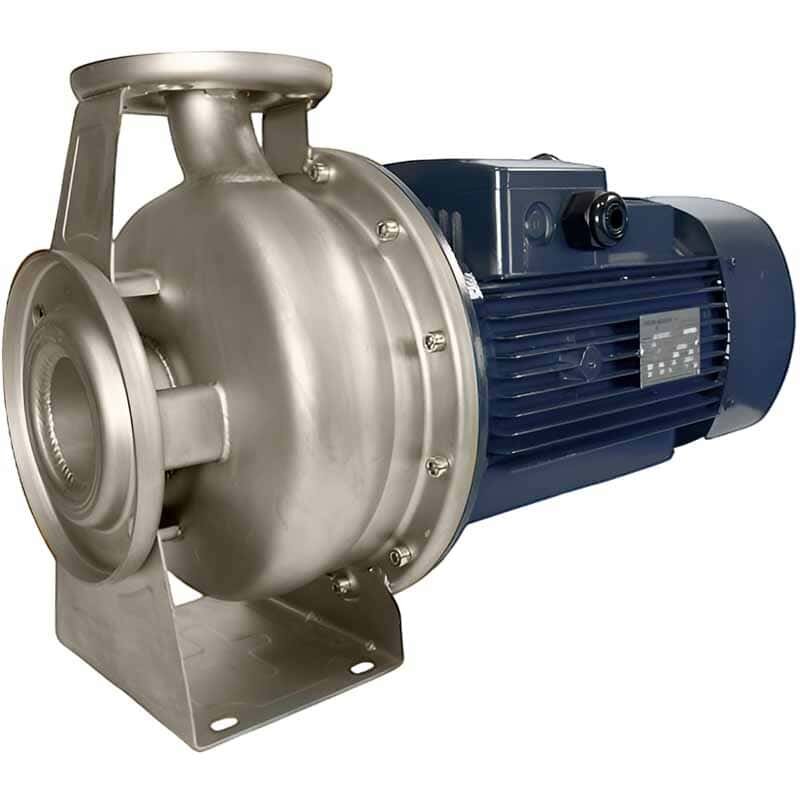

BZ 40-200/7,5 centrifugal monoblock pump (AISI)

Click image for a larger view

Code: 1019127

(0 review)

Producer	BTS Engineering
Pump capacity, cu.m/hour	24
Feed height, m	53.5
Power capacity, kW	7,5
Material	AISI 304 stainless steel
Input pipe diameter	65
Output pipe diameter	40
Protection	IP55
Power supply	3х380 V, 50 Hz
Explosion protection	No
Max.temperature, C	120
Nom.flow rate, m3/h	24
Nom.head, m	53.5
Volume, m3	0,065
Seal	Mechanical Seal, Carbon-SiC-NBR
Impeller material	AISI 304 stainless steel
Housing material	AISI 304 stainless steel
Serial number of the pump	BZ
Country of Origin	China
PumpType	console
Drive Type	electric
Installation Type	horizontal
Type of configuration	with engine
Warranty, months	12
Application	brew, wine, urea, ammonia mixture, Braga, mudflow solution, milk, Syrovatko, liquid fertilizer, CAS, juices, ice water, wort, food, caustic, heating, drying, CIP-washing, cooling tower, the drying chamber, glaze, water, increasing pressure, water recycling, salt
Weight, kg	53
Gross weight, kg	59
Length of transport packing, cm	62
Width of transport packing, cm	32
Height of transport packing, cm	40
Height of transport volume, cbm	0,079

Show all features (31)

Documentation

Description BZ 40-200/7,5 centrifugal monoblock pump (AISI)

Stainless steel standard pump BZ Used for: water supply, cleaning sets, pressure boosting, firefighting sets, irrigation, industrial applications, water circulation in climatisation sets, agricultural applications. Suitable for use with clean, aggressive liquids that are chemically compatible with the materials from which the pump is made. The pumps must be installed in enclosed places, or at least protected against inclement weather. TECHNICAL DESCRIPTION - New stainless steel standard pump - Original design by PURITY - Both square motor & round motor available - YE3 high efficient motor, with protection IP55 class F - Pump case in stainless steel AISI 304 - Impeller in stainless steel AISI 304 - Shaft in stainless steel AISI 304 - Quality NSK bearing, wear resistance mechanical seal Liquid temperature between -10℃ and +120℃ Ambient temperature up to +50℃ Max. working pressure 16 bar Continuous service S1

Categories: Cantilever centrifugal pump Pump for stillage, mash Water pump Pump for distillates Liquid Fertilizer Pump Pump for UAN Pump for milk, sour cream Urea pump Pump for beer and beer wort Brewery Pump Brine Pump Pump alcohol factory The pump for the separation of the part-time Pumps for aggressive liquids Milk pumps

Features BZ 40-200/7,5 centrifugal monoblock pump (AISI)

Producer	BTS Engineering
Pump capacity, cu.m/hour	24
Feed height, m	53.5
Power capacity, kW	7,5
Material	AISI 304 stainless steel
Input pipe diameter	65
Output pipe diameter	40
Protection	IP55
Power supply	3х380 V, 50 Hz
Explosion protection	No
Max.temperature, C	120
Nom.flow rate, m3/h	24
Nom.head, m	53.5
Volume, m3	0,065
Seal	Mechanical Seal, Carbon-SiC-NBR
Impeller material	AISI 304 stainless steel
Housing material	AISI 304 stainless steel
Serial number of the pump	BZ
Country of Origin	China
PumpType	console
Drive Type	electric
Installation Type	horizontal
Type of configuration	with engine
Warranty, months	12
Application	brew, wine, urea, ammonia mixture, Braga, mudflow solution, milk, Syrovatko, liquid fertilizer, CAS, juices, ice water, wort, food, caustic, heating, drying, CIP-washing, cooling tower, the drying chamber, glaze, water, increasing pressure, water recycling, salt
Weight, kg	53
Gross weight, kg	59
Length of transport packing, cm	62
Width of transport packing, cm	32
Height of transport packing, cm	40
Height of transport volume, cbm	0,079
